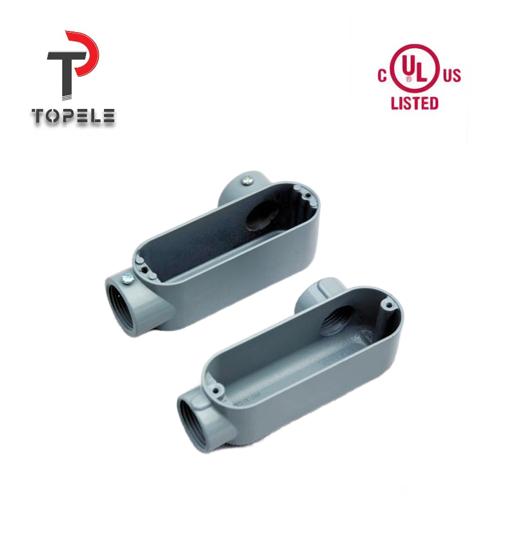

UL List Rigid Conduit Body
PDF Catalogue:TOPELE UL RIGID Conduit Body.pdf
Description
Name;Conduit Body
Material: Aluminum Die Cast /Malleable Iron
Standards: UL
Size:1/2'',3/4'',1'',1-1/4'',1-1/2'',2'',2-1/2'',3'',4''
Type:Threaded/Set-Screw/Combination
Applications:
To provide access to conductors for pulling, splicing and maintenance.
Features
1.Have different type : LB ,LL , LR , T , C
2.Diecast copperfree aluminum bodies with epoxy powder coat finish, stamped aluminum covers with natural finish, neoprene gaskets
3.Threaded hubs with set-screws
4.Packaged complete under one catalog number and ready to use
5.Compact, with flat back design for easy mounting close to walls and a spacious interior for easy wiring
6.High strength, corrosion and weather resistant
7.Available in five configurations with industry trade sizes 1/2" through 4“
8.Steel pan-head screws secure cover to body and provide superior screwdriver seating and torque; cover screws prevent loss
Competitive Advantage:
1.removable cover makes general maintenance and wire pulling and feed through easy and convenient.
2.Is an economical convenience box
3.save time and money by eliminating costly bending of large conduits in order to change the directions of conduit runs.
4.They are a weatherproof installation , allow the installer to easily bend wires into the smooth turns.
Quick Delivery: 20days for one 20ft container.
+Competitive Price
+ Good Quality: ISO certificate approval
+Best Service: fast delivery, strong package, good price, timely and effective communication
+Powerful Solution: fast and effective solution to problem
Product Tags:
|
|
1/2" UL List Rigid Conduit Body LL / LR / LB / C / T Type Aluminum NTP Type Images
|
